Modular Crimping Tool
Home / Products / Modular Crimping Tool

●Tool 200A/200AR/200/200R design with 10 position punches.For crimping 8P8C plug, plug,please use AMP 8P8C plug with 2 extra cavities on. each side as Fig 1.
●Tool 2008A/2008AR/2008/2008R design with 8 position punches.For crimping the ordinary 8P8C plug.this kind of 8P plug without additional cavity on each side as Fig.2.
●Adjusting the 6P guide:use a flat(slot)screw driver to set the guide to right side for crimping normal 6P plug and set the guide to left side for crimping DEC plug.
●Built-in round cable stripper.

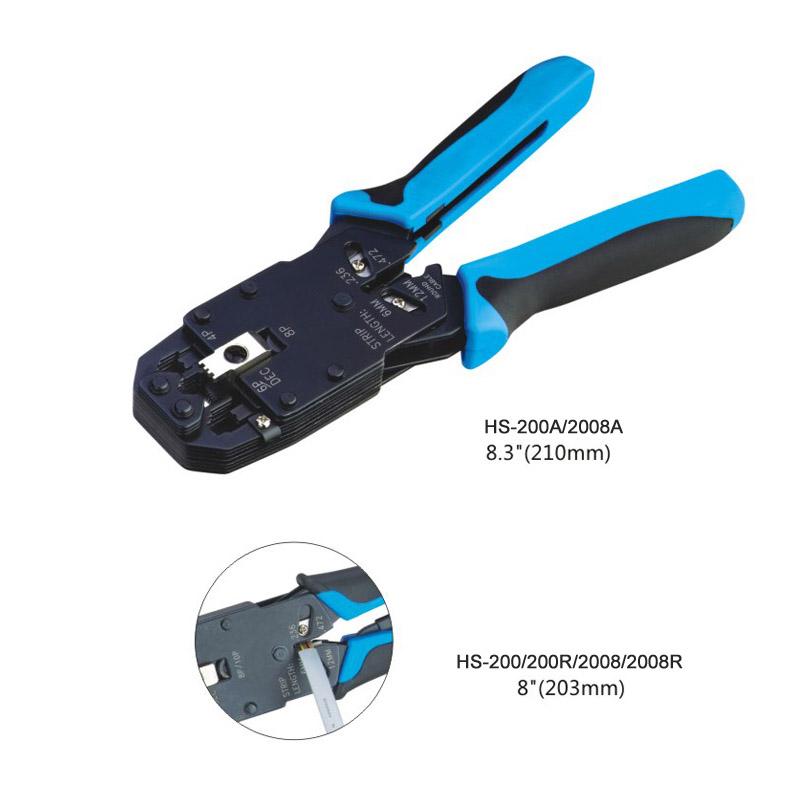

HS For Crimping Modular Plug Ratchet
200/200A

10P10C,AMP 8P8C/RJ-45,6P6C/RJ-12,6P4C/RJ-11

4P4C&492C PLUGS&DEC/OFF SET PLUG-6P6C

No
200R/200AR Yes
2008/2008A

8P8C/RJ-45,6P6C/RJ-12,6P4C/RJ-11,4P4C&492C

PLUGS&DEC/OFF SET PLUG-6P6C

No
2008R/2008AR Yes
