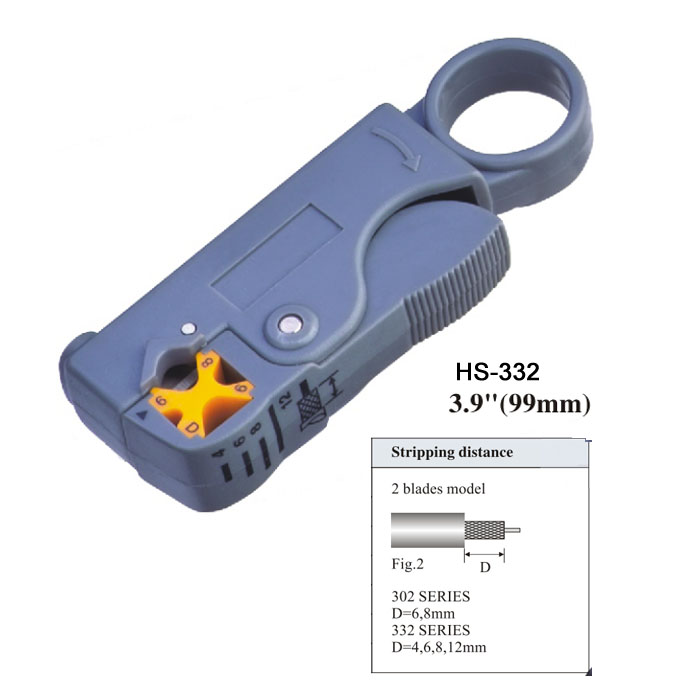

●The V-block can be reversed,and the indication arrow▶show recommended cable size.Stripping distance can be changed if user moves one of the stripping blades.(AS FIG.2)
●Stripping the coaxial jacket and inner conductor in one operation by rotating the stripper in clock wise direction 3-6 times,easy and effective.
●For stripping different materials of cable,use the built-in hex key to align the sensitive socket and adjust the blade for good results.
HS- | For stripping RG cable |
332 | RG-58/59/62/6/6QS/3C/4C/5C |
332A |
RG-59/62/6/4C/5C |
332B |
RG-58/59/62/3C/4C |
332D |
RG-174 |
302A | RG-59/62/6/4C/5C |
302B |
RG-58/59/62/3C/4C |
322S | RG-8/11/213 |
