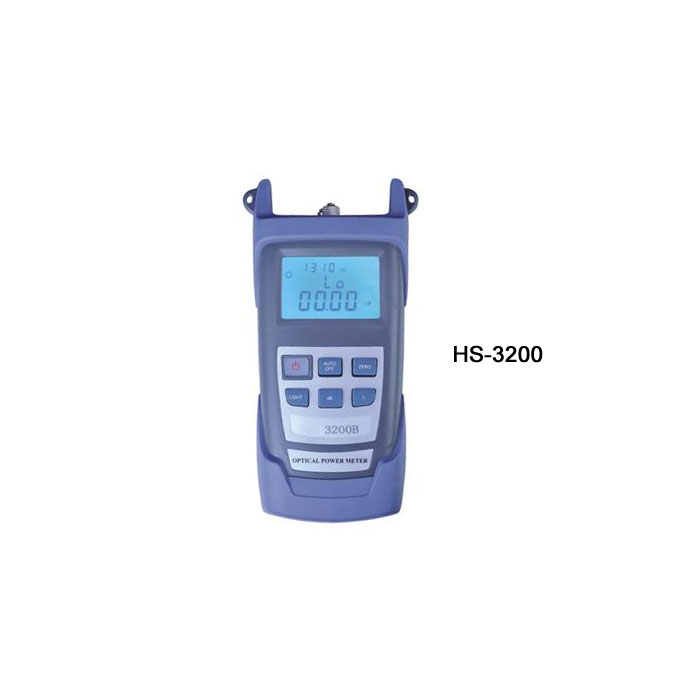

HS-3200 Handheld Optical Power Meter is a newly designed fiber optic tester, which aims at the installation, engineering acceptance and maintenance of fiber network.
Compared with other usual power meters, the HS-3200 has more functions,like automatic wavelength identification, auto wavelength switching, intelligent backlight, data saving via USB port.
Combined with HS-3200A/3200B handheld optical light source, it offers a quick and accurate testing solution on both SM and MM fibers.

Features
◎Wave ID Auto wavelength identification & switching
◎Frequency ID---Auto frequency identification
◎2 types of backlight modes, manual or outside light intensity,which indicated by LED light red or blue color.
◎Intelligent backlight
◎1000 records storage or download via USB cable
◎USB communication port for saved testing records download
◎Reference power level can be set up and stored
◎User self-calibrating function
◎Auto-off function
◎Up to 240hrs battery life

Model	HS-3200A	HS-3200B
Calibration Wavelength(nm)	800~1700
Detector type	InGaAs
Measurement Range(dBm)	-70+10	-50+26
Uncertainty(dB)	±0.2(5%)
linearity(dB)	0.01
Display resolution(dB)	0.03
Frequency ID Hz	270 330 1K 2K
Wave ID nm	850,980,1300,1310,1490,1550,1625
Date Storage Capacity	1000
Communication Port	USB
Connector	FC/SC/ST Interchangeable
Alkaline battery	3AAA 1.5V or Libattery (9V)
Power Adapter(V)	8.4
Battery Operating time(h)	240 Without backlight
Operation Temperature(°C)	-10(°C)+60
Storage Temperature(°C)	-25(°C)+70
Dimension(mm)	172*82*33
Weight(g)	310
