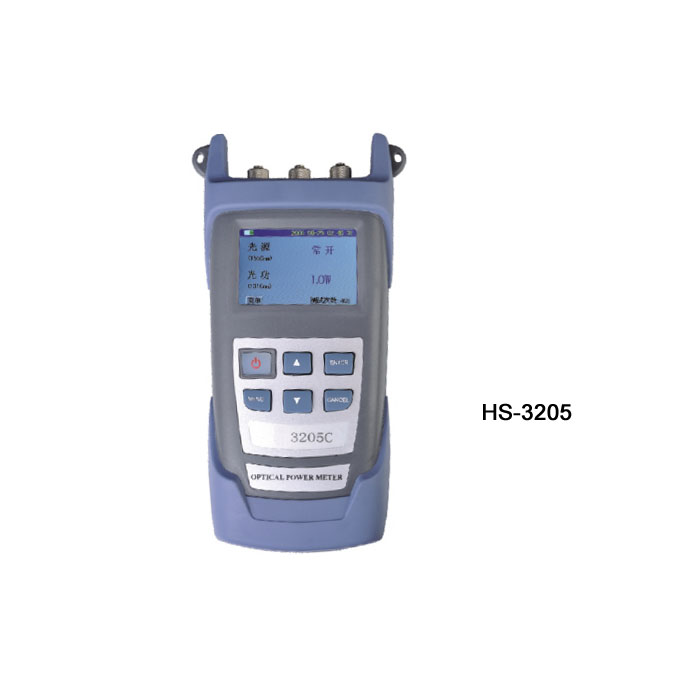

HS-3205 handheld optical multi meter
integrates the functions of an intelligent optical power meter module and of a highly stable light source module in one unit which can perform closed-loop tests by incorporating both modules. Individual regimes ofoperation can also be manually chosen using menu operation to switch functions. A perfect combination to make your optical fiber tests a lot more convenient.
Features
Includes all the outstanding functions of handheld intelligent power meter(HS-3205)
Includes all the outstanding functions of handheld stable light source(HS-3205)
Switching of the power meter function and that of the light source by menu operation
Different light sources and power meters can be built into HS-3205
Applications
Maintenance in Telecom
Maintenance CATV
Test Lab of optical fibers
Other Fiber Optic Measurements
Model
 HS-3205A HA-3205B HS-3205C

Power Meter+Laser SourceLaser
 Laser Source+Power Meter
 Light Source+Power Meter+Laser Source
Power Meter
Measuring Range(dBm)
 -70~+10/-50~+26
Detector type
 InGaAs
Uncertainty(dB)
 ±0.2(5%)
Calibration wavelength(nm)
 850,980,1300,1310,1490,1550
Display precision(dB)
 0.01
Light Source
Output wavelength (nm)
 1310/1550/650/(other option)
Measuring Range(dBm)
 -30dBm--23dBm
Accuracy
 ±10nW(5%)
SM Output Power(dBm)
 ＞=-2dBm
MM Output Power(dBm)
 ＞=-20dBm
Laset Source
Output Power mw
 1,5,10,20,30(optionl)
General Specification
Communication
 RS232
Operating Temperature
 -10~+60
Storage Termperature
 -25~+70
Battery Operating Time
 ＞15h
Display
 2.4TFT LCD
Dimension(mm) 190*100*48
Power Supply
 Li battery (9V)
Weight g 280
