Description

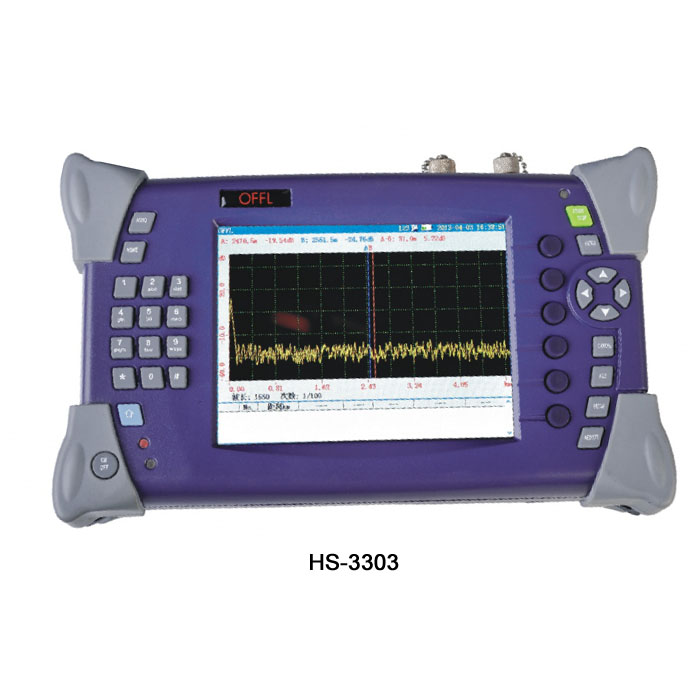

HS-3303 Optical Fiber Ranger
HS-3303 Optical Fiber Ranger is the most portable test instrument in the industry.
It adopts the OTDR technical principles and integrates the powerful analysis software, which enables the TL-3303 Optical Fiber Ranger to detect fiber faults location more accurately and easily.
Features
◎Portable, rugged, lightweight; Easy to use.
◎More accurate testing results and better repeatability.
◎Up to 8 fiber faults can be detected in each measurement.
◎Automatic Pulse Width Control design to ensure a convenient operation.
◎Easy to identify the faults location.
◎Built-in visual fault locator (VFL), conveniently to find the faults in dead zone.
◎Dust, water and shock proof, designed for field use.
◎Long battery life, up to 5000 measurements operation.
Applications
◎Testing the distance of the fiber and identify the faults location in the fiber link.
◎Locates reflective and non-reflective breaks in the fiber network.
HS-3303 Optical Fiber Ranger
HS-3303 Optical Fiber Ranger is the most portable test instrument in the industry.
It adopts the OTDR technical principles and integrates the powerful analysis software, which enables the TL-3303 Optical Fiber Ranger to detect fiber faults location more accurately and easily.
Features
◎Portable, rugged, lightweight; Easy to use.
◎More accurate testing results and better repeatability.
◎Up to 8 fiber faults can be detected in each measurement.
◎Automatic Pulse Width Control design to ensure a convenient operation.
◎Easy to identify the faults location.
◎Built-in visual fault locator (VFL), conveniently to find the faults in dead zone.
◎Dust, water and shock proof, designed for field use.
◎Long battery life, up to 5000 measurements operation.
Applications
◎Testing the distance of the fiber and identify the faults location in the fiber link.
◎Locates reflective and non-reflective breaks in the fiber network.
◎Inspection of fiber repair and maintenance.
|
Model |
HS-3303A |
HS-3303B |
|
Oprating Wavelength |
1310nm/1550nm ±20nm |
1310nm/1550nm ±20nm |
|
Fiber Type |
SM | SM |
|
Max. Displaying Distance |
15/16dB(40-50km) |
30/32dB(100-120km) |
| Optical Connector Type | FC/PC |
| Reflection Event Dead Zone |
15m |
|
VFL Wavelength(option) |
650nm |
|
VFL Output Power(option) |
5mW |
| Storage Memory |
1000 traces |
| LCD |
640*480, 5.1 inch, TFT |
|
Communication Interface |
USB |
|
Power Supp |
External Power: 9V 2A Battery: 7.4V 4400mAh |
|
Language |
English/Chinese |
|
Working Temperature |
-5℃～40℃ |
| Storage Temperature |
-10℃～60℃ |
|
Dimensions |
215mm*130mm*66mm |
|
Weigth |
1kg |
