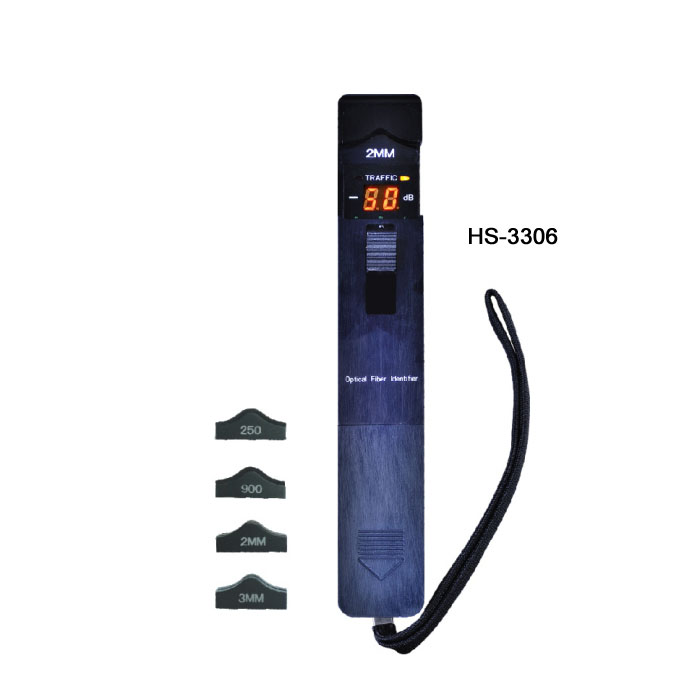

HS-3306 Optical Fiber ldentifier
Identified Wavelength Range 800-1700 nm
Identified Signal Type CW
270Hz±5%, 1kHz±5%, 2kHz±5%
Accurate test with Sunshade
HS-3306 Optical Fiber ldentifier can quickly identify the direction of transmitted fiber and display the relative core power without any damages to the bended fiber. When the traffic is present, the intermittently audible tone is activated.
The TL-3306 optical fiber identifier also recognizes the modulation like 270Hz,1kHz and 2kHz. When thit ais used to detect the frequency,the continuousl audible tone is activated.
There are four adapter heads available:φ0.25,φ0.9,φ2.0 and φ3.0 .
The TL-3306 optical fiber identifier is powered by a 9V alkaline battery.
Features
-Easy-to use with ONE KEY operation.
-Efficiently identifies the traffic direction and frequency tone(270Hz, 1kHz,2kHz)with audible warning.
-Displays the relative core power.
-More accurate test with Sunshade.
-Easy-to-replace adaptors.
-Durable metal housing and quality construction.
-Lower power indication.
-Easy-to-replace adaptors
-Lower power indication
-Efficient fiber identifier
-Fiber tester
HS-3306 Optical Fiber ldentifier
Identified Wavelength Range 800-1700 nm
Identified Signal Type CW
270Hz±5%, 1kHz±5%, 2kHz±5%
Accurate test with Sunshade
HS-3306 Optical Fiber ldentifier can quickly identify the direction of transmitted fiber and display the relative core power without any damages to the bended fiber. When the traffic is present, the intermittently audible tone is activated.
The TL-3306 optical fiber identifier also recognizes the modulation like 270Hz,1kHz and 2kHz. When thit ais used to detect the frequency,the continuousl audible tone is activated.
There are four adapter heads available:φ0.25,φ0.9,φ2.0 and φ3.0 .
The TL-3306 optical fiber identifier is powered by a 9V alkaline battery.
Features
-Easy-to use with ONE KEY operation.
-Efficiently identifies the traffic direction and frequency tone(270Hz, 1kHz,2kHz)with audible warning.
-Displays the relative core power.
-More accurate test with Sunshade.
-Easy-to-replace adaptors.
-Durable metal housing and quality construction.
-Lower power indication.
|
Model |
HS-3306 |
| Identified Wavelength Range |
800-1700nm |
|
Identified Signal Type |
CW, 270Hz±5%,1kHz±5%, 2kHz±5% |
|
Detector Type |
φ1mm lnGaAs 2pcs |
|
Adapter Type |
φ0.25(Applicable for Bare Fiber) |
| φ0.9(Applicable for φ0.9 Cable) | |
|
φ2.0(Applicable for φ2.0 Cable) |
|
| φ3.0(Applicable for φ3.0 Cable) | |
|
Signal Direction |
Left & Right LED |
|
Signal Direction Test Range (dBm,CW/0.9mm bare fiber) |
-46~10(1310nm) |
|
-50~10(1550nm) |
|
|
Signal Power Test Range (dBm,CW/0.9mm bare fiber) |
-50~+10 |
|
Signal Frequency Display (Hz) |
270,1k,2k |
|
Frequency Test Range(dBm, Average Valu |
φ0.9，φ2.0，φ3.0 -30~0(270Hz,1kHz) |
|
φ0.9，φ2.0，φ3.0 -30~0(270Hz,1kHz) |
|
| φ0.25 -25~0(1kHz,2kHz) | |
| φ0.25 -20~0(2kHz) | |
|
Insertion Loss(dB,Typical Value) |
0.8（1310nm） |
|
2.5（1550nm） |
|
| Alkaline Battery(V) | 9 |
|
Operating Temperature(℃) |
-10℃~60℃ |
|
Storage Temperature(℃) |
-25℃~70℃ |
|
Dimension(mm) |
196*30.5*27 |
|
Weight(g) |
200 |
Standard Parkages
|
MODEL |
INCLUDES |
| HS-3306 | HS-3306 Optical Fiber Identifier,4pcs adapter heads,Sunshade,Alkaline battery,User Manual,Cotton Stick and Soft Carrying case. |
